2 in 1 Car TPMS Tire Pressure Monitoring System Radar Parking Sensor System

Parking sensor system is supplementary safety equipment that is specially designed for car reversing.There is hidden trouble while reversing because of blind zone behind the car.After installing parking sensor,when reversing:

*LCD system displays the distance on the screen and sends out four beeping tone as a reminder.

So that it is more relax and safety while reversing.

Through the pressure sensors installed in the four tires of the car,achieve automatic and real-time monitoring the car tire pressure and temperature.Provide guarantee for the safe running.

Features:

● Anti-jamming technology ,low error report.

● Ergonomic design, brake-ready operation.

● Power supply reversal protection with built-in automatic recovery.

● Super wide TFT display, real-time monitoring of Tire Pressure and Radar.

● Wide operating temperature range, Radar system 4/6/8 sensors optional.

● The TPMS sensor is AEC-Q100 certified and designed for long life.

Technical PARAMETER

Display

Working frequency：433.90MHz

Working temperature：-30~80℃

Working current：<120mA

When rest display: <1mA

Temperature display range：-40~105℃

Tire pairing （Sensors are factory paired）

Tire pressure display range：0~350KPa

Main box

Working voltage：DC9~16V

Working Current：<50mA

Working temperature：-40~80℃

TPMS Sensor

Working frequency：433.90MHz Working voltage：2.4~3.4V

Working current：Static＜1uA

Peak emission＜15mA

Working temperature：-40~105℃

Tire temperature monitoring range：-40~105℃

Tire pressure monitoring range：0~350KPa

Temperature precision：±3℃（-20~75℃）;±5℃（-40~125℃）

Tire pressure precision：±7kPa(0~50℃);±17.5kPa(-40~125℃)

Max torque：12N.m

Battery capacity：210mAh Design life：6 year

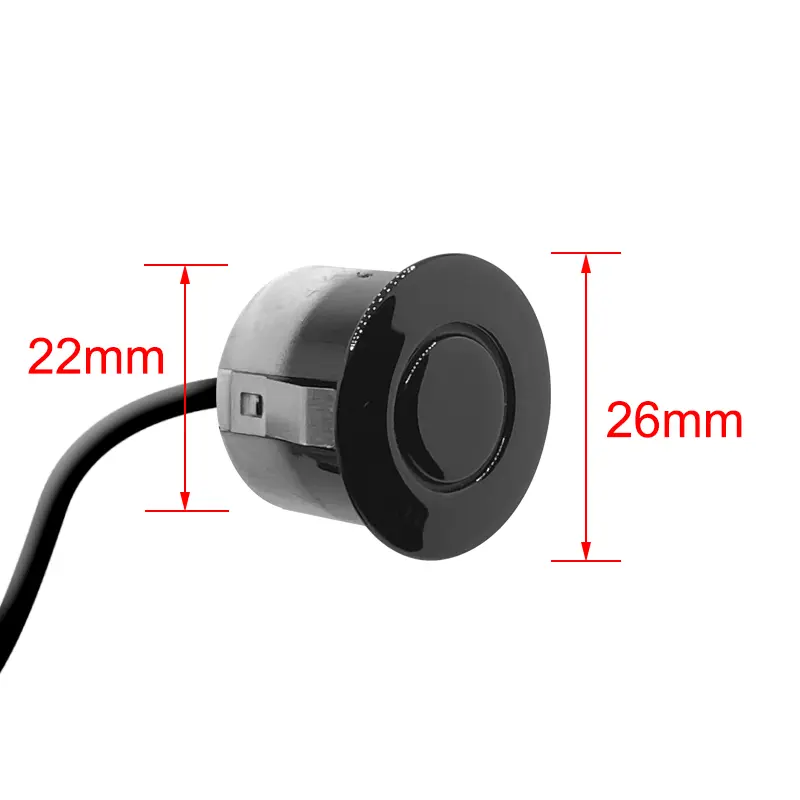

Radar Sensor

Working frenquency：40K±2K

Working Temperature：-40~80℃
