100% DIY installation Solar Tire pressure monitoring system(TPMS) Wireless solar built-in tire pressure monitor
100% DIY installation Solar Tire pressure monitoring system(TPMS) Wireless solar built-in tire pressure monitor
Tire Pressure Monitoring System(TPMS), let the driver get the real-time tire pressure data, temperature data and status, always keeping an eye on your car's performance.
Solar powered design, no battery or electricity needed.
Support shows four wheels' tire pressure and temperature simultaneously, high/low tire pressure alarm, high temperature alarm and air leakage condition alarm.
The real-time tire pressure data,visual and audible warning for abnormal pressure and temperature,very convenient and practical.
High-definition color screen display, easy to install.
DISPLAY
Receive the data from TPMS and display the corresponding datas on the screen.
Working frequency:433.92MHZ
Charging voltage:DC4.5~5.5V
Working current<25mA
Working temperature:-20℃~+75℃
Display range(Temperature):-9℃~+99℃
Display range(Tire pressure):0~3.1Bar0

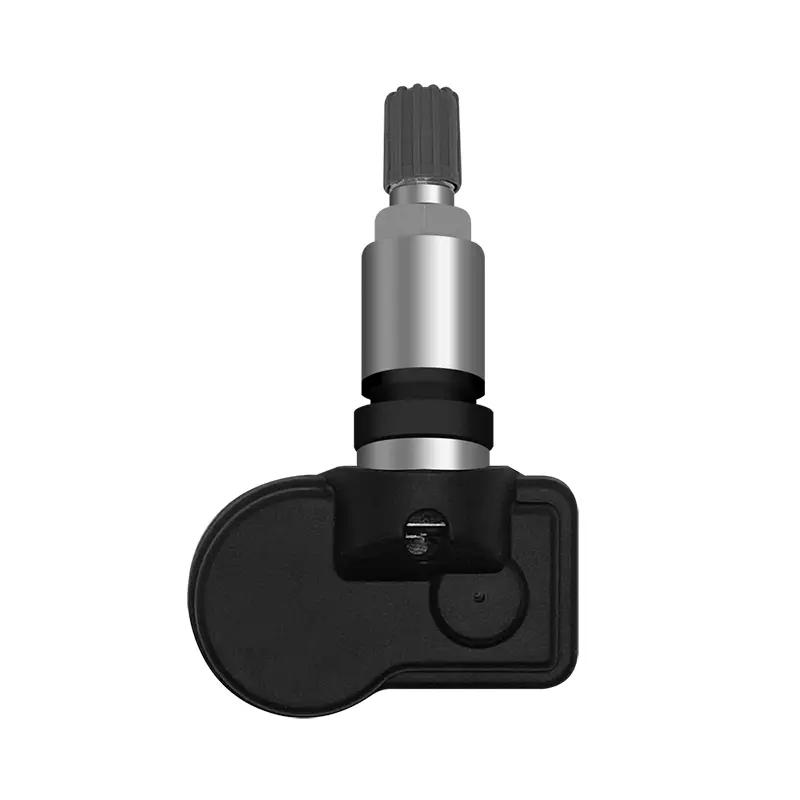

TPMS SENSORS
High performance High efficiency
Working frequency: 433.92MHZ
Working voltage: 2.4-3.4V
Working temperature: -40~ 105 degrees
Monitoring range (temperature) : -40 ~ +125 degrees
Monitoring range (air pressure) : 0 ~ 3.5bar
Working current (static) : < 1uA
Working current (emission) : < 15mA
Accuracy (temperature) : +/- 1 degree
Accuracy (air pressure) : +/ -0.1 Bar
Battery design life: >6 years/80,000kms
SPECIFICATION
1.TPMS display with solar panel, optional Micro USB input
2. Intelligent sleeping mode for power saving
3.Real-time monitoring of tire pressure and temperature.
4. Advanced digital filtering technology, strong antiinterference, long receiving distance
5. Optimized lo low power system design,durable sensor battery
6. Automatic on/off (wake up/sleep)
7. Automatically adjust the screen brightness and 5 manual adjustment
8. Built-in BMS battery management system
9. Sensor parts AEC-Q100 certificated
10.Pre-programmed sensors, no pairing is needed
11.Wireless, easy installation
Tire pressure monitoring system
Tire pressure monitoring system(TPMS) is an electronic system designed to monitor the air pressure inside the pneumatic tires on various types of vehicles and reports real-time tire pressure information to the driver.The target of a TPMS is avoiding traffic accidents,poor fuel economt,and increased tire wear due to under-inflated tires through early recognition of a hazardous state of the tires.
